Jigsaw Lite - Jigsaw Finance


Prepared by:

Halborn Logo

HALBORN

Last Updated 05/07/2024

Date of Engagement by: April 8th, 2024 - April 17th, 2024

Summary

100% of all REPORTED Findings have been addressed

All findings

5

Critical

0

High

0

Medium

0

Low

2

Informational

3


1. Introduction

Jigsaw engaged Halborn to conduct a security assessment of their Jigsaw-lite protocol beginning on April 8th and ending on April 17th. The security assessment was scoped to the smart contracts provided in the Jigsaw-lite GitHub repository. Commit hash and further details can be found in the Scope section of this report.

Jigsaw-lite protocol incentivizes early users by rewarding their interactions before the full launch. Utilizing the [Ion protocol](https://ionprotocol.io), users earn yield by staking whitelisted underlying assets to Ion's pools. Additionally, participants receive jPoints, the protocol's reward token, which can later be exchanged for $Jig tokens, the governance token of Jigsaw.

2. Assessment Summary

Halborn was provided around one week for the engagement and assigned one full-time security engineer to review the security of the smart contract in scope. The engineer is a blockchain and smart contract security expert with advanced penetration testing and smart contract hacking skills, and deep knowledge of multiple blockchain protocols.

The purpose of the assessment is to:

    • Identify potential security issues within the smart contracts in scope.

    • Ensure that smart contract functionality operates as intended.

In summary, Halborn identified some security recommendations that were successfully addressed by the Jigsaw team.

3. Test Approach and Methodology

Halborn performed a combination of manual and automated security testing to balance efficiency, timeliness, practicality, and accuracy in regard to the scope of this assessment. While manual testing is recommended to uncover flaws in logic, process, and implementation; automated testing techniques help enhance coverage of the code and can quickly identify items that do not follow the security best practices. The following phases and associated tools were used during the assessment:

    • Research into architecture and purpose.

    • Smart contract manual code review and walkthrough.

    • Graphing out functionality and contract logic/connectivity/functions (solgraph).

    • Manual assessment of use and safety for the critical Solidity variables and functions in scope to identify any arithmetic-related vulnerability classes.

    • Manual testing by custom scripts.

    • Static Analysis of security for scoped contracts (slither, aderyn and 4naly3er).

    • Fork deployment (Foundry).


3.1 Out-of-scope

    • External libraries, centralization risks and financial-related attacks.

    • New features/implementations after/with the remediation commit IDs.

    • Changes that occur outside the scope of PRs.

4. RISK METHODOLOGY

Every vulnerability and issue observed by Halborn is ranked based on two sets of Metrics and a Severity Coefficient. This system is inspired by the industry standard Common Vulnerability Scoring System.
The two Metric sets are: Exploitability and Impact. Exploitability captures the ease and technical means by which vulnerabilities can be exploited and Impact describes the consequences of a successful exploit.
The Severity Coefficients is designed to further refine the accuracy of the ranking with two factors: Reversibility and Scope. These capture the impact of the vulnerability on the environment as well as the number of users and smart contracts affected.
The final score is a value between 0-10 rounded up to 1 decimal place and 10 corresponding to the highest security risk. This provides an objective and accurate rating of the severity of security vulnerabilities in smart contracts.
The system is designed to assist in identifying and prioritizing vulnerabilities based on their level of risk to address the most critical issues in a timely manner.

4.1 EXPLOITABILITY

Attack Origin (AO):
Captures whether the attack requires compromising a specific account.
Attack Cost (AC):
Captures the cost of exploiting the vulnerability incurred by the attacker relative to sending a single transaction on the relevant blockchain. Includes but is not limited to financial and computational cost.
Attack Complexity (AX):
Describes the conditions beyond the attacker’s control that must exist in order to exploit the vulnerability. Includes but is not limited to macro situation, available third-party liquidity and regulatory challenges.
Metrics:
EXPLOITABILIY METRIC (mem_e)METRIC VALUENUMERICAL VALUE
Attack Origin (AO)Arbitrary (AO:A)
Specific (AO:S)
1
0.2
Attack Cost (AC)Low (AC:L)
Medium (AC:M)
High (AC:H)
1
0.67
0.33
Attack Complexity (AX)Low (AX:L)
Medium (AX:M)
High (AX:H)
1
0.67
0.33
Exploitability EE is calculated using the following formula:

E=meE = \prod m_e

4.2 IMPACT

Confidentiality (C):
Measures the impact to the confidentiality of the information resources managed by the contract due to a successfully exploited vulnerability. Confidentiality refers to limiting access to authorized users only.
Integrity (I):
Measures the impact to integrity of a successfully exploited vulnerability. Integrity refers to the trustworthiness and veracity of data stored and/or processed on-chain. Integrity impact directly affecting Deposit or Yield records is excluded.
Availability (A):
Measures the impact to the availability of the impacted component resulting from a successfully exploited vulnerability. This metric refers to smart contract features and functionality, not state. Availability impact directly affecting Deposit or Yield is excluded.
Deposit (D):
Measures the impact to the deposits made to the contract by either users or owners.
Yield (Y):
Measures the impact to the yield generated by the contract for either users or owners.
Metrics:
IMPACT METRIC (mIm_I)METRIC VALUENUMERICAL VALUE
Confidentiality (C)None (I:N)
Low (I:L)
Medium (I:M)
High (I:H)
Critical (I:C)
0
0.25
0.5
0.75
1
Integrity (I)None (I:N)
Low (I:L)
Medium (I:M)
High (I:H)
Critical (I:C)
0
0.25
0.5
0.75
1
Availability (A)None (A:N)
Low (A:L)
Medium (A:M)
High (A:H)
Critical (A:C)
0
0.25
0.5
0.75
1
Deposit (D)None (D:N)
Low (D:L)
Medium (D:M)
High (D:H)
Critical (D:C)
0
0.25
0.5
0.75
1
Yield (Y)None (Y:N)
Low (Y:L)
Medium (Y:M)
High (Y:H)
Critical (Y:C)
0
0.25
0.5
0.75
1
Impact II is calculated using the following formula:

I=max(mI)+mImax(mI)4I = max(m_I) + \frac{\sum{m_I} - max(m_I)}{4}

4.3 SEVERITY COEFFICIENT

Reversibility (R):
Describes the share of the exploited vulnerability effects that can be reversed. For upgradeable contracts, assume the contract private key is available.
Scope (S):
Captures whether a vulnerability in one vulnerable contract impacts resources in other contracts.
Metrics:
SEVERITY COEFFICIENT (CC)COEFFICIENT VALUENUMERICAL VALUE
Reversibility (rr)None (R:N)
Partial (R:P)
Full (R:F)
1
0.5
0.25
Scope (ss)Changed (S:C)
Unchanged (S:U)
1.25
1
Severity Coefficient CC is obtained by the following product:

C=rsC = rs

The Vulnerability Severity Score SS is obtained by:

S=min(10,EIC10)S = min(10, EIC * 10)

The score is rounded up to 1 decimal places.
SeverityScore Value Range
Critical9 - 10
High7 - 8.9
Medium4.5 - 6.9
Low2 - 4.4
Informational0 - 1.9

5. SCOPE

Files and Repository
(a) Repository: jigsaw-lite
(b) Assessed Commit ID: d9f0bc0
(c) Items in scope:
  • src/Holding.sol
  • src/JigsawPoints.sol
  • src/Staker.sol
↓ Expand ↓
Out-of-Scope: Third party dependencies, Economic attacks
Remediation Commit ID:
Out-of-Scope: New features/implementations after the remediation commit IDs.

6. Assessment Summary & Findings Overview

Critical

0

High

0

Medium

0

Low

2

Informational

3

Security analysisRisk levelRemediation Date
Centralization RiskLowSolved - 04/27/2024
addRewards function miscalculates rewardRateLowSolved - 04/27/2024
Access controlled functions with wrong visibilityInformationalSolved - 04/27/2024
Modifiers redundancyInformationalSolved - 04/27/2024
Lack of checks-effects-interactions patternInformationalSolved - 04/27/2024

7. Findings & Tech Details

7.1 Centralization Risk

// Low

Description

Despite being protected by access control measures, the invokeHolding(address _holding, address _contract, bytes calldata _call) and function genericCall(address _contract, bytes calldata _call) functions still warrant scrutiny due to its potential centralization risk within the Solidity codebase. While restricted to authorized insiders such as developers and administrators of the protocol, the function's ability to execute arbitrary code through external function calls introduces centralized control concerns.

Although access to the call method is limited to privileged individuals, its invocation remains a centralized point of influence. Authorized insiders have the capability to trigger dynamic function calls, enabling them to influence the behavior of the contract beyond its predefined scope. While this access is crucial for protocol management and maintenance, it also poses inherent risks that must be carefully managed.

Centralization risks associated with these functions include:

  1. Unauthorized Manipulation: While restricted to insiders, unauthorized or malicious use of the call method could still lead to manipulation of the contract's state or execution flow, potentially resulting in unintended consequences or financial loss.

  2. Privilege Escalation: Despite access controls, the possibility of privilege escalation exists, whereby insiders abuse their authorized status to perform actions beyond their intended scope, compromising the integrity of the contract.

  3. Exposure to External Threats: External attackers may attempt to compromise authorized accounts or exploit vulnerabilities in the access control mechanism to gain unauthorized access to the call method, posing a significant security risk to the protocol.

While access control measures provide a level of assurance, they should be complemented by proactive security measures to safeguard the integrity and resilience of the protocol against potential exploits and centralized control risks.

BVSS
Recommendation

One possible solution is to entirely remove these centralized functions. In case this arbitrary call function is used in response to unexpected actions over the mentioned contract, deploying beacon-proxy clones offers enhanced flexibility.

Remediation plan

SOLVED: The Jigsaw team implemented a custom solution which avoids the use of genericCall without user permission. Even, the Jigsaw's user will have the opportunity to select who can use it and which contract and how many times it can be called.

Remediation Hash
References
StakingManager.sol#221-235
Holding.sol#99-109

7.2 addRewards function miscalculates rewardRate

// Low

Description

addRewards lacks of any tool to confirm that available funds are assigned to a certain rewardPeriod or still pending to transfer/assign. This, in certain situations, can lead to miscalculations of the rewardRate.

Although this issue can be solved in most situations by adding funds to Staker contract as soon as possible, failure to update accurate reward calculations could lead to:

  1. Loss of user trust and decreased participation.

  2. Negative impact on reputation and potential legal risks.

  3. Economic imbalance within the protocol, causing dissatisfaction among users.

Proof of Concept

There are only 3 steps:

  • Owner of the contract transfer rewardTokens the Staker contract.

  • Owner of the contract call addRewards in order to distribute rewards among existing and incoming users, with rewardsDuration = 1 year.

  • 6 months later, owner call to addRewards again but this time he decide to only add the half of what was already added at the begining. So calculation of rewardRate starts:

    • Lower limit is defined to be above 0:

      - Calculated leftover is the half of initial. (because the half of rewardsDuration already passed)

      - As _amount, we again add the half of the initial amount, so (leftover + _amount) == initial amount.

      - Duration hasn't change.

      - So finally, rewardRate stays the same.

    • For upper limit we get that rewardToken balance didn't change:

      - Nobody withdrawn rewards since the beginning so apparently there are enough tokens to share, the initial amount.

    • Finally Stacker contract:

      • Renews rewardRate as same value.

      • Renews periodFinish by adding 1 year to current timestamp.

  • Consequence:

    • As no rewardToken has been actually added to the contract, It will run out of funds when day 365 (from the beginning) arrives.

    • Last 6 months rewards will be virtually accrued but, if not detected and solved, unavailable in the contract.

function test_addRewards_withoutTransferingRewardTokens() public {
    uint256 amount2add = rewardsDuration * 0.01 ether;

    vm.prank(OWNER, OWNER);
    bool approved = JigsawPoints(rewardToken).approve(address(staker), type(uint256).max);
    require(approved, "approval failed");

    vm.prank(OWNER, OWNER);
    JigsawPoints(rewardToken).transfer(address(staker), amount2add);

    console.log("Add rewards by same amount");
    vm.prank(OWNER, OWNER);
    staker.addRewards(amount2add);

    uint256 initial_rewardRate = staker.rewardRate();

    console.log("6 months later...");
    skip(365 days / 2);
    assertEq(block.timestamp, 365 days / 2 + 1);

    console.log("We add more rewards but tokens has ever been transferred");
    console.log("(in either direction)");
    vm.prank(OWNER, OWNER);
    staker.addRewards(amount2add / 2);

    uint256 final_rewardRate = staker.rewardRate();
    uint256 balance_ = JigsawPoints(rewardToken).balanceOf(address(staker));
    assertEq(final_rewardRate, initial_rewardRate);
    assertEq(staker.periodFinish(), 365 days * 1.5 + 1);
}

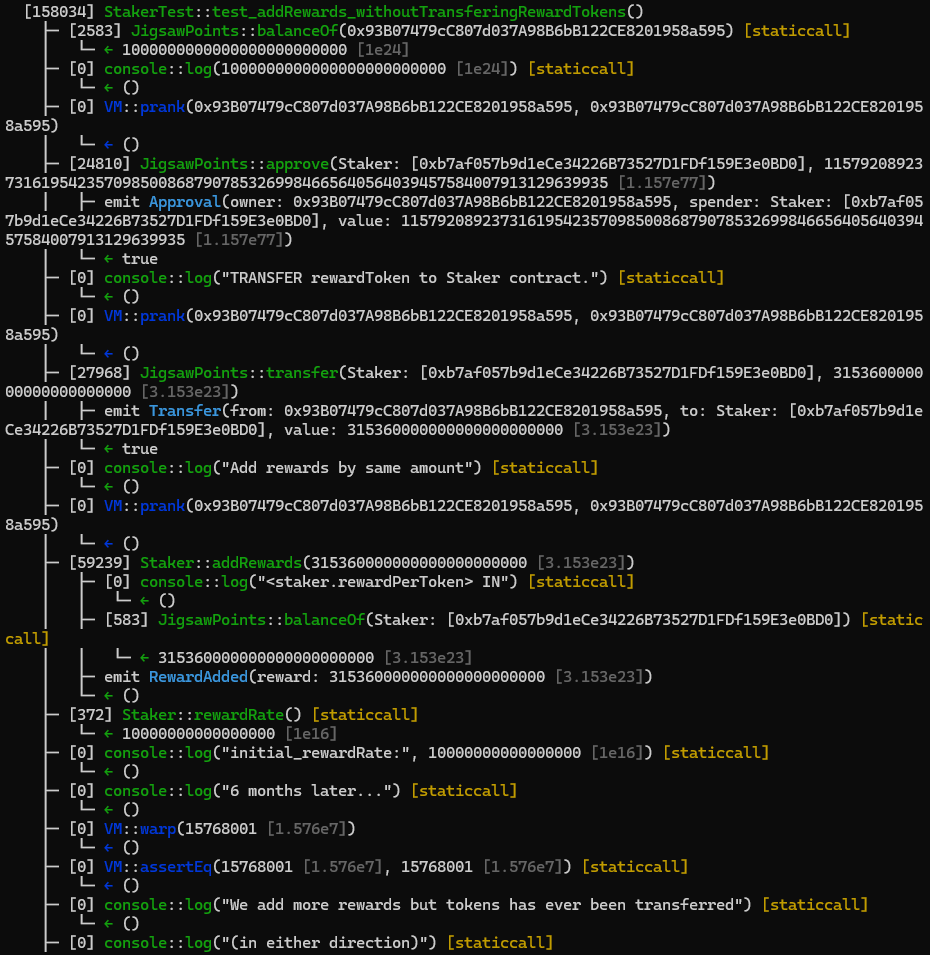

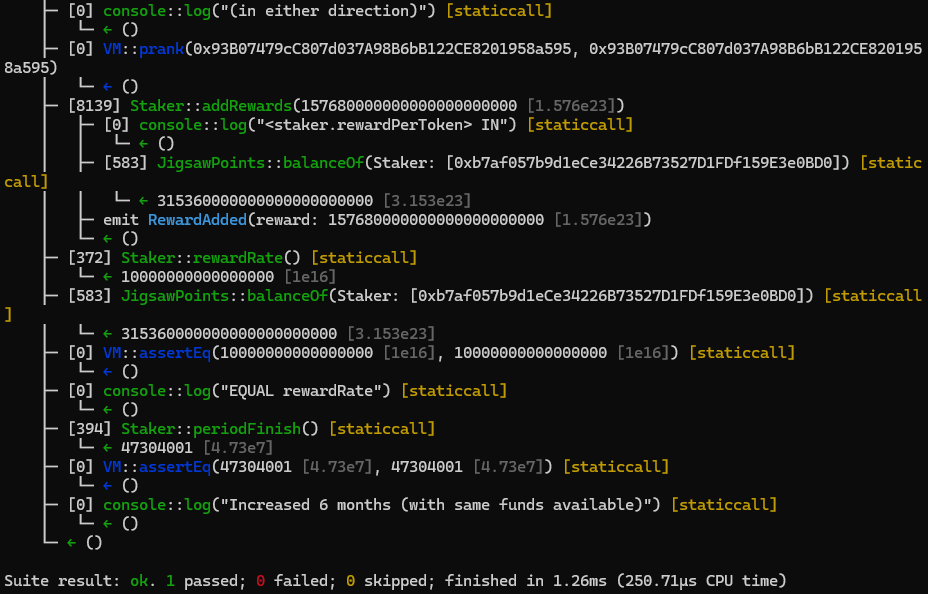

PoC output 1
BVSS
Recommendation

It appears that the easiest way to handle this issue is to do actual transferFrom with the same _amount used to call the function to get the rewardTokens into the contract atomically, this way, anytime a reward is added, it will be actually present in the contract.

Remediation Plan

SOLVED: The Jigsaw team introduced the aforementioned transferFrom inside addRewards function.

Remediation Hash
References
staker.sol#171-189

7.3 Access controlled functions with wrong visibility

// Informational

Description

Functions withdraw and claimRewards, have onlyStakingManager access modifier, but those functions are not implemented in contract StakingManager to be directly called. Therefore, its visibility can be changed to internal.

Score
Recommendation

Change visibility to internal or implement functions to call these from StakingManager contract.

Remediation Plan

SOLVED: The Jigsaw team solved this issue by turning both functions to internal, making several changes accordingly.

Remediation Hash
References
Staker.sol#296-311
Staker.sol#320-336

7.4 Modifiers redundancy

// Informational

Description

AccessControlDefaultAdminRules's constructor is already checking that provided _admin address is different from address zero.
Having two modifiers in a Solidity method that essentially perform the same task of verifying that an address is not address(0) introduces inefficiency and redundancy into the codebase. This redundancy increases the complexity of the code and adds unnecessary overhead to the execution of the method. Maintaining multiple modifiers with duplicate functionality complicates code readability and may lead to confusion for developers trying to understand the purpose and behavior of the method. Additionally, redundant modifiers consume additional gas during contract execution, potentially impacting the overall cost and performance of transactions.

Score
Recommendation

Consider deleting validAddress(_admin) modifier.

Remediation Plan

SOLVED: The Jigsaw team moved from AccessControl to Ownable and suppressed the modifier redundancy.

Remediation Hash
References
StakingManager#119

7.5 Lack of checks-effects-interactions pattern

// Informational

Description

Utilizing the checks-effects-interactions pattern remains crucial even when a function incorporates the nonReentrant modifier. While the nonReentrant modifier effectively prevents reentrancy attacks by restricting multiple calls to the same function during execution, the checks-effects-interactions pattern provides additional security measures. This pattern involves segregating the code into distinct phases: checks to validate inputs, effects to update state variables, and interactions with external contracts.

By adhering to this pattern, developers can ensure that each function call performs necessary validations before modifying the contract state or interacting with external contracts. This approach enhances the robustness and reliability of the codebase, mitigating potential vulnerabilities and reducing the risk of unintended behavior or exploits.

Furthermore, incorporating the checks-effects-interactions pattern promotes code clarity and maintainability by organizing the logic into well-defined stages. This architectural design facilitates debugging, auditing, and future modifications, contributing to the overall security and stability of the smart contract system.

Therefore, while the nonReentrant modifier addresses specific reentrancy concerns, combining it with the checks-effects-interactions pattern provides a comprehensive defense mechanism against a wider range of security threats and ensures the integrity and resilience of the Solidity codebase.

Score
Recommendation

To improve this issue, it suggested creating a temporary variable adding existing _totalSupply and _amount and, if the check is passed, changing the actual storage _totalSupply value.

Remediation Plan

SOLVED: The Jigsaw team modified the code by first checking the condition by reading the storage and after confirmation, it is actually modified.

Remediation Hash
References
Staker.sol#282

8. Automated Testing

Halborn used automated testing techniques to enhance the coverage of certain areas of the smart contract in scope. Among the tools used was Slither, a Solidity static analysis framework. After Halborn verified the smart contract in the repository and was able to compile it correctly into their ABI and binary format, Slither was run against the contract. This tool can statically verify mathematical relationships between Solidity variables to detect invalid or inconsistent usage of the contract's API across the entire code-base.

The security team assessed all findings identified by the Slither software, and findings with severity Information and Optimization are excluded in the below results.

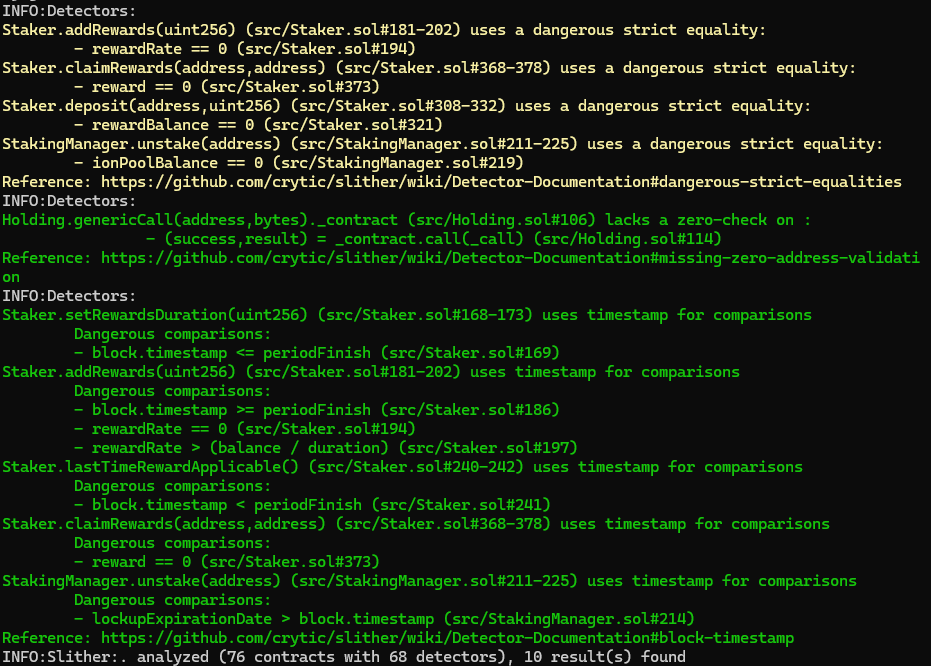

Slither output

The findings obtained as a result of the Slither scans were reviewed, and they were not included in the report because they were determined false positives or actual optimization, far from being security issues.

Halborn strongly recommends conducting a follow-up assessment of the project either within six months or immediately following any material changes to the codebase, whichever comes first. This approach is crucial for maintaining the project’s integrity and addressing potential vulnerabilities introduced by code modifications.
