Protocol Updates - July 2024 - Moonwell

Prepared by:

Halborn Logo

HALBORN

Last Updated 07/23/2024

Date of Engagement by: July 15th, 2024 - July 17th, 2024

Summary

No Reported Findings to Address

All findings

0

Critical

0

High

0

Medium

0

Low

0

Informational

0

Table of Contents

1. Introduction

Moonwell engaged Halborn to conduct a security assessment on their smart contracts beginning on July 15th and ending on July 17th. The security assessment was scoped to the smart contracts provided in the moonwell-fi/moonwell-contracts-v2 GitHub repository. Commit hash and further details can be found in the Scope section of this report.

2. Assessment Summary

Halborn was provided 2 days for the engagement and assigned 1 full-time security engineer to review the security of the smart contract in scope. The engineer is a blockchain and smart contract security expert with advanced penetration testing and smart contract hacking skills, and deep knowledge of multiple blockchain protocols.

The purpose of the assessment is to:

    • Identify potential security issues within the smart contracts in-scope:

      • xWELLRouter.sol

      • MultichainGovernor.sol

      • MultichainVoteCollection.sol

      • WormholeBridgeAdapter.sol

      • mip-m00.sol


    • Ensure that smart contract functionality operates as intended, considering the modifications performed.

    • Review the modifications to the contracts to ensure no vulnerabilities or security hot-spots are added.


In summary, Halborn has not identified any security risk inherent to the contract under analysis, given the engagement scope.

3. Test Approach and Methodology

Halborn performed a combination of manual and automated security testing to balance efficiency, timeliness, practicality, and accuracy in regard to the scope of this assessment. While manual testing is recommended to uncover flaws in logic, process, and implementation; automated testing techniques help enhance coverage of the code and can quickly identify items that do not follow the security best practices. The following phases and associated tools were used during the assessment:

    • Research into architecture and purpose.

    • Smart contract manual code review and walkthrough.

    • Graphing out functionality and contract logic/connectivity/functions (solgraph).

    • Manual assessment of use and safety for the critical Solidity variables and functions in scope to identify any arithmetic-related vulnerability classes.

    • Manual testing by custom scripts.

    • Static Analysis of security for scoped contract, and imported functions (slither).

    • Testnet deployment (Foundry).


4. Manual Testing

The contracts in scope were thoroughly and manually analyzed for potential vulnerabilities and bugs, as well as known optimizations and best practices when developing Smart Contracts in Solidity programming language. The review notes of the assessment are the following:


    • The MultichainGovernor.sol contract now has a receive() external payable function, and handles correctly the excess amount sent to propose function.

    • The MultichainVoteCollection.sol contract now refunds the excess amount sent to emitVotes function.

    • The refactored initialize function in the WormholeBridgeAdapter contract has the correct implementation, taking an array of trusted Wormhole chain id's and Trusted senders, and applies verification against array length mismatch, which is recommended.The call to _addTrustedSender takes the correct parameters to the function call.

    • In the xWELLRouter.sol contract, hard-coded values for chainId are removed, being now the destination chaindId a parameter to be passed in function calls to bridgeToSender and bridgeToRecipient functions. The allow-list mechanism used by the protocol applies the correct mitigation against permanent loss of funds, even if user provides a wrong chainId.

    • All the contracts in-scope are employing thorough and organized NatSpec documentation, what enhances readability.

    • Best practices in terms of gas-saving are also being applied.

    • The scripts provided within the commit hash in scope are adherent to the modifications.

5. RISK METHODOLOGY

Every vulnerability and issue observed by Halborn is ranked based on two sets of Metrics and a Severity Coefficient. This system is inspired by the industry standard Common Vulnerability Scoring System.
The two Metric sets are: Exploitability and Impact. Exploitability captures the ease and technical means by which vulnerabilities can be exploited and Impact describes the consequences of a successful exploit.
The Severity Coefficients is designed to further refine the accuracy of the ranking with two factors: Reversibility and Scope. These capture the impact of the vulnerability on the environment as well as the number of users and smart contracts affected.
The final score is a value between 0-10 rounded up to 1 decimal place and 10 corresponding to the highest security risk. This provides an objective and accurate rating of the severity of security vulnerabilities in smart contracts.
The system is designed to assist in identifying and prioritizing vulnerabilities based on their level of risk to address the most critical issues in a timely manner.

5.1 EXPLOITABILITY

Attack Origin (AO):
Captures whether the attack requires compromising a specific account.
Attack Cost (AC):
Captures the cost of exploiting the vulnerability incurred by the attacker relative to sending a single transaction on the relevant blockchain. Includes but is not limited to financial and computational cost.
Attack Complexity (AX):
Describes the conditions beyond the attacker’s control that must exist in order to exploit the vulnerability. Includes but is not limited to macro situation, available third-party liquidity and regulatory challenges.
Metrics:
EXPLOITABILIY METRIC (mem_e)METRIC VALUENUMERICAL VALUE
Attack Origin (AO)Arbitrary (AO:A)
Specific (AO:S)		1
0.2
Attack Cost (AC)Low (AC:L)
Medium (AC:M)
High (AC:H)		1
0.67
0.33
Attack Complexity (AX)Low (AX:L)
Medium (AX:M)
High (AX:H)		1
0.67
0.33
Exploitability EE is calculated using the following formula:

E=∏meE = \prod m_e

5.2 IMPACT

Confidentiality (C):
Measures the impact to the confidentiality of the information resources managed by the contract due to a successfully exploited vulnerability. Confidentiality refers to limiting access to authorized users only.
Integrity (I):
Measures the impact to integrity of a successfully exploited vulnerability. Integrity refers to the trustworthiness and veracity of data stored and/or processed on-chain. Integrity impact directly affecting Deposit or Yield records is excluded.
Availability (A):
Measures the impact to the availability of the impacted component resulting from a successfully exploited vulnerability. This metric refers to smart contract features and functionality, not state. Availability impact directly affecting Deposit or Yield is excluded.
Deposit (D):
Measures the impact to the deposits made to the contract by either users or owners.
Yield (Y):
Measures the impact to the yield generated by the contract for either users or owners.
Metrics:
IMPACT METRIC (mIm_I)METRIC VALUENUMERICAL VALUE
Confidentiality (C)None (I:N)
Low (I:L)
Medium (I:M)
High (I:H)
Critical (I:C)		0
0.25
0.5
0.75
1
Integrity (I)None (I:N)
Low (I:L)
Medium (I:M)
High (I:H)
Critical (I:C)		0
0.25
0.5
0.75
1
Availability (A)None (A:N)
Low (A:L)
Medium (A:M)
High (A:H)
Critical (A:C)		0
0.25
0.5
0.75
1
Deposit (D)None (D:N)
Low (D:L)
Medium (D:M)
High (D:H)
Critical (D:C)		0
0.25
0.5
0.75
1
Yield (Y)None (Y:N)
Low (Y:L)
Medium (Y:M)
High (Y:H)
Critical (Y:C)		0
0.25
0.5
0.75
1
Impact II is calculated using the following formula:

I=max(mI)+∑mI−max(mI)4I = max(m_I) + \frac{\sum{m_I} - max(m_I)}{4}

5.3 SEVERITY COEFFICIENT

Reversibility (R):
Describes the share of the exploited vulnerability effects that can be reversed. For upgradeable contracts, assume the contract private key is available.
Scope (S):
Captures whether a vulnerability in one vulnerable contract impacts resources in other contracts.
Metrics:
SEVERITY COEFFICIENT (CC)COEFFICIENT VALUENUMERICAL VALUE
Reversibility (rr)None (R:N)
Partial (R:P)
Full (R:F)		1
0.5
0.25
Scope (ss)Changed (S:C)
Unchanged (S:U)		1.25
1
Severity Coefficient CC is obtained by the following product:

C=rsC = rs

The Vulnerability Severity Score SS is obtained by:

S=min(10,EIC∗10)S = min(10, EIC * 10)

The score is rounded up to 1 decimal places.
SeverityScore Value Range
Critical9 - 10
High7 - 8.9
Medium4.5 - 6.9
Low2 - 4.4
Informational0 - 1.9

6. SCOPE

Files and Repository
(a) Repository: moonwell-contracts-v2
(b) Assessed Commit ID: fe4eaec
(c) Items in scope:
  • MultichainGovernor.sol
  • MultichainVoteCollection.sol
  • mip00.sol
↓ Expand ↓
Out-of-Scope:
Out-of-Scope: New features/implementations after the remediation commit IDs.

7. Assessment Summary & Findings Overview

Critical

0

High

0

Medium

0

Low

0

Informational

0

Security analysisRisk levelRemediation Date

8. Findings & Tech Details

9. Automated Testing

Introduction

Halborn used automated testing techniques to enhance the coverage of certain areas of the smart contract in scope. Among the tools used was Slither, a Solidity static analysis framework. After Halborn verified the smart contract in the repository and was able to compile it correctly into their ABI and binary format, Slither was run against the contract. This tool can statically verify mathematical relationships between Solidity variables to detect invalid or inconsistent usage of the contract's API across the entire code-base.

The security team assessed all findings identified by the Slither software, and findings with severity Information and Optimization are also included in the below results.

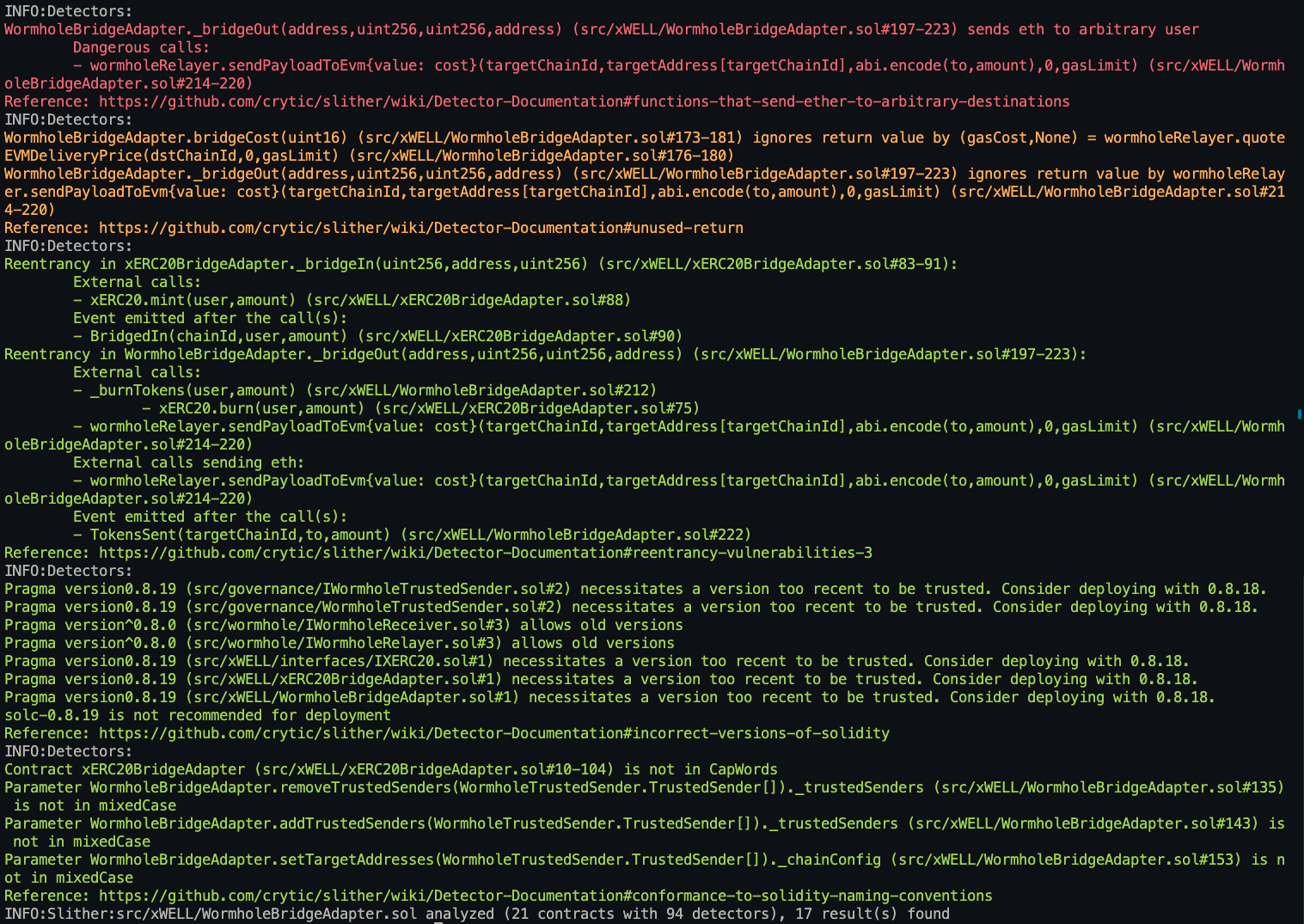

slither(01)

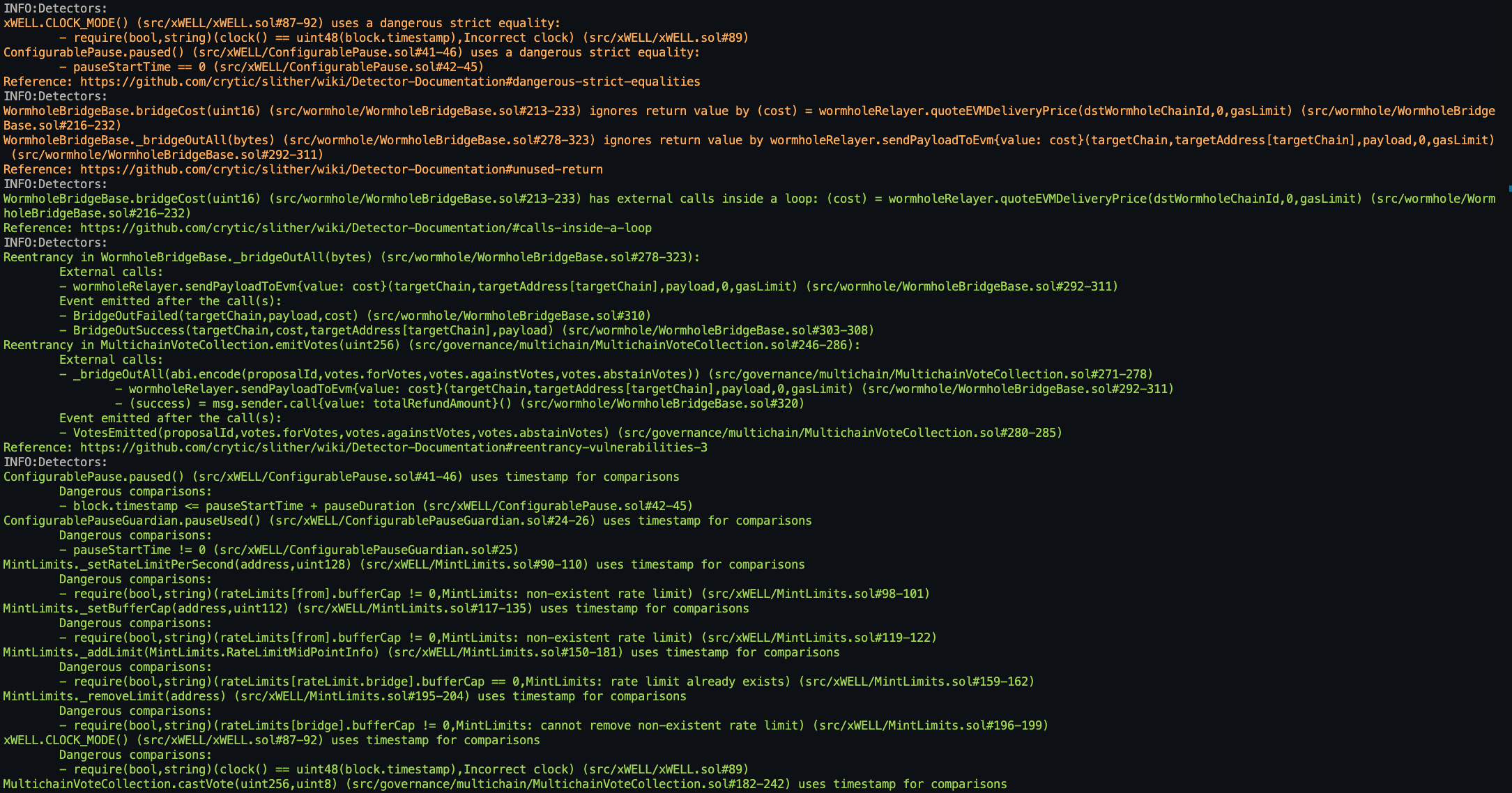

slither(02)

The findings obtained as a result of the Slither scan were reviewed, and they were not included in the report because they were determined false positives.

Halborn strongly recommends conducting a follow-up assessment of the project either within six months or immediately following any material changes to the codebase, whichever comes first. This approach is crucial for maintaining the project’s integrity and addressing potential vulnerabilities introduced by code modifications.
