Prepared by:
HALBORN
Last Updated 05/10/2024
Date of Engagement by: February 26th, 2024 - March 12th, 2024
Summary
100% of all REPORTED Findings have been addressed
All findings
4
Critical
0
High
1
Medium
0
Low
3
Informational
0
Table of Contents
1. Introduction
The team at Halborn was provided 2 weeks for the engagement and assigned two full-time security engineers to verify the security of the assets in scope. The security engineer is a penetration testing expert with advanced knowledge in web, mobile Android and iOS, recon, discovery & infrastructure penetration testing.
The goals of our security assessments are to improve the quality of the systems we review and to target sufficient remediation to help protect users.
2. Assessment Summary
In summary, Halborn identified several minor security issues. These include the lack of protective measures like jailbreak detection, and anti-hook and anti-debug mechanisms. Additionally, the possibility of multiple voting instances using a deactivated passport was recognized as a potential security risk. However, no sensitive data has been found stored on the device or transmitted to the remote backend server. Furthermore, bypassing SSL pinning was deemed impossible. Implementing defense-in-depth strategies such as SSL pinning is crucial for enhancing app resilience against reverse engineering and certain client-side attacks. Given that SSL pinning could not be disabled, the interception of communications by malicious actors is unlikely, unless they engage in reverse engineering to deactivate the SSL pinning in the app.
In summary, Halborn identified some security risks that were accepted and addressed by the Rarimo team.
In order to figure out which requests were made, the Halborn team used cryptography hooks instrumentation with Frida which allowed to monitor while the voting process is made, the endpoints requests sent to remote server backend. Those requests were made without any sensitive data sent:
https://issuer.polygon.robotornot.mainnet-beta.rarimo.com/v1/credentials/%7BuserDid%7D/%7BchemaID%7D - is used to get claim offers in order to retrieve verifiable credentials.
https://rpc-api.node1.mainnet-beta.rarimo.com/rarimo/rarimo-core/identity/state/%7BIssuerIdHex%7D - is used to get current issuer state.
https://api.stage.freedomtool.org/integrations/proof-verification-relayer/v1/verify-proof - is used to send raw EVM calldata that will be executed on a registration contract.
https://api.mock.freedomtool.org/integrations/identity-provider-service/v1/gist-data - is used to get GIST data from rarimo, in nearly future we will get rid of this endpoint.
3. Test Approach and Methodology
Halborn performed a combination of manual and automated security testing to balance efficiency, timeliness, practicality, and accuracy regarding the scope of the pentest. While manual testing is recommended to uncover flaws in logic, process and implementation; automated testing techniques assist enhance coverage of the infrastructure and can quickly identify flaws in it.
The following phases and associated tools were used throughout the term of the assessment:
Storing private keys and assets securely
Send/Receive tokens and assets securely to another wallet
Any attack that impacts funds, such as draining or manipulating of funds
Application Logic Flaws
Areas where insufficient validation allows for hostile input
Application of cryptography to protect secrets
Brute Force Attempts
Input Handling
Source code review
Fuzzing of all input parameters
Technology stack-specific vulnerabilities and Code Assessment
Known vulnerabilities in 3rd party / OSS dependencies.
4. RISK METHODOLOGY
- 5 - Almost certain an incident will occur.
- 4 - High probability of an incident occurring.
- 3 - Potential of a security incident in the long term.
- 2 - Low probability of an incident occurring.
- 1 - Very unlikely issue will cause an incident.
- 5 - May cause devastating and unrecoverable impact or loss.
- 4 - May cause a significant level of impact or loss.
- 3 - May cause a partial impact or loss to many.
- 2 - May cause temporary impact or loss.
- 1 - May cause minimal or un-noticeable impact.
- 10 - CRITICAL
- 9 - 8 - HIGH
- 7 - 6 - MEDIUM
- 5 - 4 - LOW
- 3 - 1 - VERY LOW AND INFORMATIONAL
5. SCOPE
6. Assessment Summary & Findings Overview
Critical
0
High
1
Medium
0
Low
3
Informational
0
Impact x Likelihood
HAL-06
HAL-03
HAL-01
HAL-04
| Security analysis | Risk level | Remediation Date |
|---|---|---|
| Users with deactivated passports can vote more than 1 time | High | Risk Accepted |
| Lack of jailbreak detection | Low | Acknowledged |
| Lack of fingerprint or passcode authentication | Low | Solved - 03/05/2024 |
| Lack of anti-hook anti-debug mechanism | Low | Acknowledged |
7. Findings & Tech Details
7.1 Users with deactivated passports can vote more than 1 time
// High
Description
When a person loses their password, they will go to the authorities to get a new passport. The old one will get deactivated, and the new one will be used. However, the application does not check if the passport is invalidated, meaning that one person can vote more than 1 time. It is true that to do that, the person needs to get a new passport and find the old one, since to get a new one when lost the old one must be reported as lost to the authorities.
Proof of Concept
Scenario:
A person has two passports.
He obtained the first password nXXXXXX and lost it.
Then, he went to get a new one. When he did that, the new passport will have a text with a note saying “the passport nYYYYY is available due to the loss of the nXXXXX”, but this is written on the new passport (first page, above the profile), and the old one gets “deactivated” on Police servers, which means that if he goes to an airport using that first deactivated passport, and they check the number or read the NFC it will show as deactivated. However, since the application does this validation offline, it does not have this kind of verification.
Score
Likelihood: 4
Recommendation
In order to solve the issue, the passport ID should be checked against a Police BBDD to check if the passport is or is not deactivated.
Remediation Plan
RISK ACCEPTED: The Rarimo team is aware of this issue, but currently there is no correct way to fix it without reviling the user data to the backend.
7.2 Lack of jailbreak detection
// Low
Description
Anti-jailbreak mechanisms are not used in the iOS application. These mechanisms can help mitigate reverse engineering, application modification, and unauthorized versions of mobile applications to some extent, but few if any will be completely successful against a determined adversary. However, they can be used as part of a defense-in-depth strategy that seeks to minimize the impact and likelihood of such an attack, along with binary patching, local resource modification, method hooking, method swizzling, and heap modification.
Proof of Concept
Score
Likelihood: 2
Recommendation
The application should not allow any modifications in its operation.
Obfuscated code.
Add Frida and other open-source jailbreak detection tools.
Implement jailbreak detection.
Remediation Plan
ACKNOWLEDGED: The Rarimo team acknowledged the issue.
Remediation Hash
7.3 Lack of fingerprint or passcode authentication
// Low
Description
During the assessment, it was observed that there was no authentication mechanism defined on the application. Even though the device has a passcode enabled or fingerprint, but it was observed that the application did not implement any security mechanism.
If a user used fingerprint or passcode on the mobile device, there is no authentication mechanism in place to protect the application and anybody who has access to the device can access the application as there will be no authentication against these. Since the likelihood is low, the severity has been downgraded.
Score
Likelihood: 2
Recommendation
Ensure proper authentication implementation in order to avoid potential unauthorized attacks.
Remediation Plan
SOLVED: The Rarimo team solved the issue.
Remediation Hash
7.4 Lack of anti-hook anti-debug mechanism
// Low
Description
The tested application does not have any security features or mechanisms to prevent malicious actions, Anti Hook and Anti Debug.
Proof of Concept

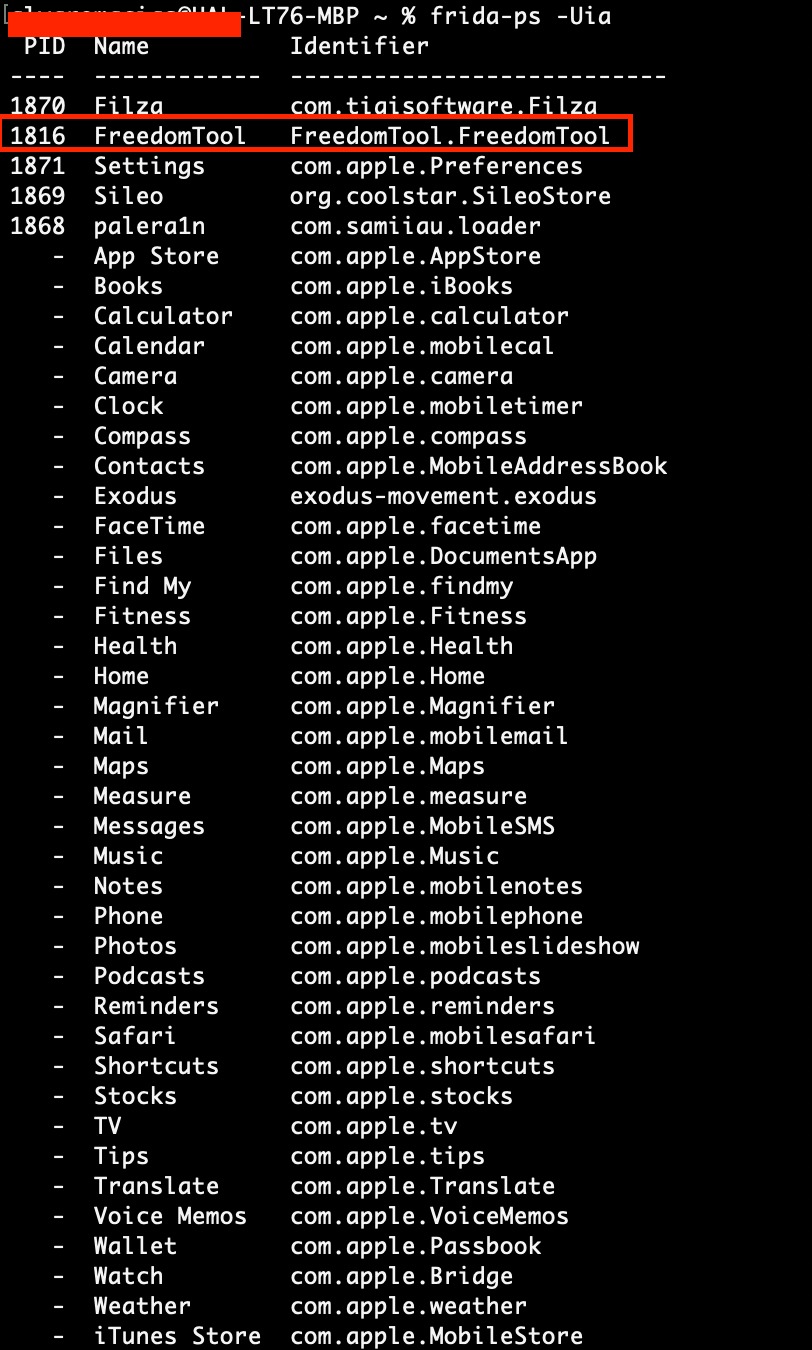

Install Frida on the jailbroken phone. Setup Jailbroken Device
Use the Objection Tool to investigate the Anti-Hook mechanisms in the application. Objection

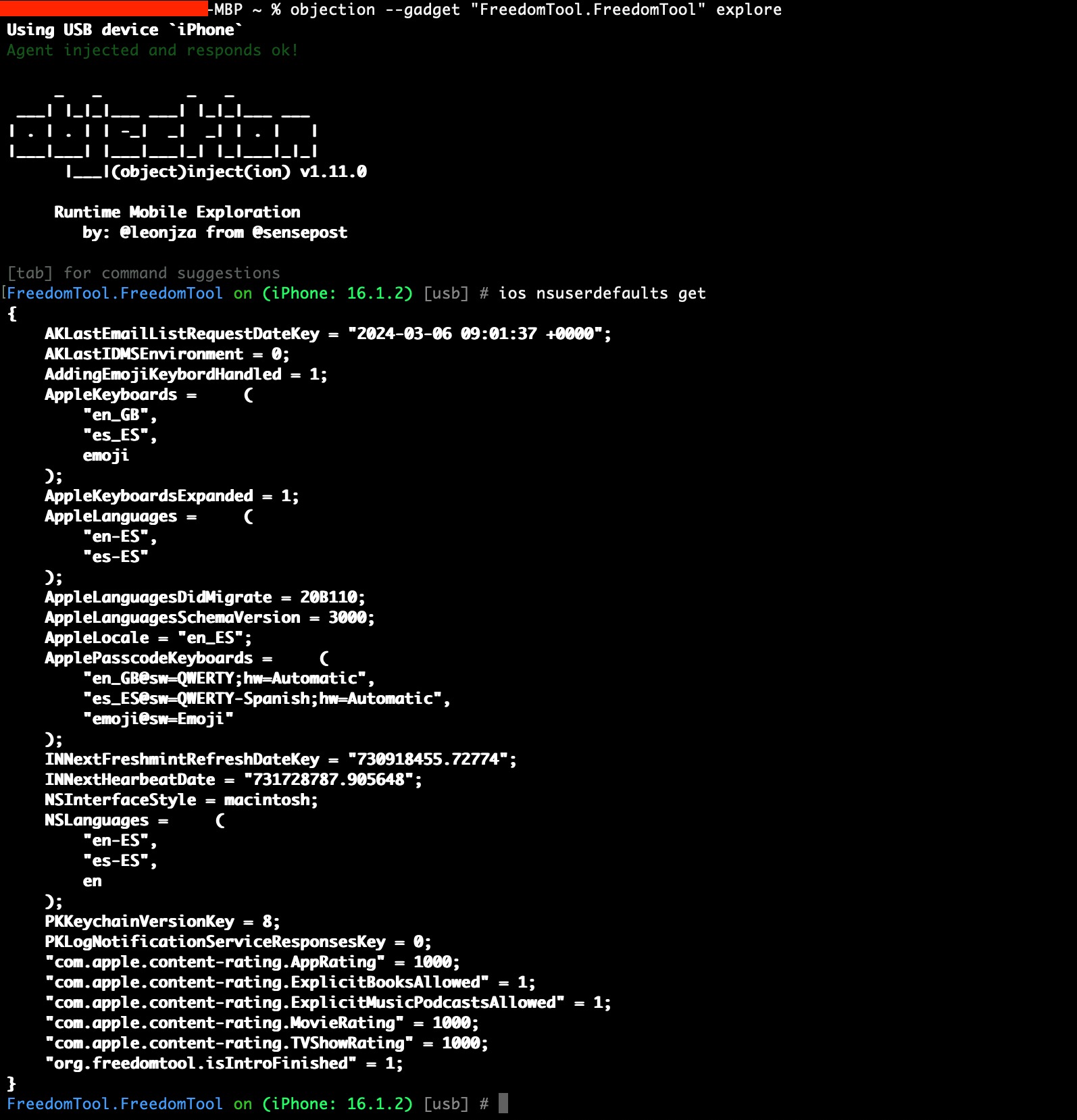

Use the following command in the objection tool to investigate the Jailbroken device.
objection --gadget "<package name>" exploreRun the following code in the objection.
ios nsuserdefaults get
You can see an application does not terminate; therefore, the application does not have anti-hook or anti-tampering mechanisms.
Score
Likelihood: 2
Recommendation
Anti-Debug, Anti-Hook and Integrity Check mechanism (completed in the native code), which will protect against injection of various types of scripts into it, i.e., Frida Gadgets. The application should not allow modifications in its operation.
Remediation Plan
ACKNOWLEDGED: The Rarimo team acknowledged the issue.
Remediation Hash
References
Halborn strongly recommends conducting a follow-up assessment of the project either within six months or immediately following any material changes to the codebase, whichever comes first. This approach is crucial for maintaining the project’s integrity and addressing potential vulnerabilities introduced by code modifications.
